Old HyperCASH
- - Discontinued - -
The program will not be developed further. Please change your workflow. Information on follow-up programmes, announcements and discontinuations.
Further information or alternatives can be found here: Discontinuation of Hypersoft products
- - Discontinued - -
HyperCASH controls your vending machines and upgrades like no other program does.
Machine programs are usually statically developed or adapted by their manufacturers for specific projects. With HyperCASH, Hypersoft also enables integrators and trained specialist trade partners to create standard software programs for vending machines and upgraders on the basis of HyperCASH. This saves a lot of costs during creation and offers you a high investment security, because the solution is flexible for changes and extensions in the future. The high standardization rate also makes support and services more flexible and efficient.
For the security of bookings against fraud and during tax audits, we rely on the proven business logic, practical experience and certification of Hypersoft POS systems.
The functional reliability is also incomparably high. Because HyperCASH speaks and uses several of the most widely used protocols, you can use all the most popular cash management devices from any manufacturer.
A powerful option is the ability to seamlessly combine HyperCASH with the Hypersoft Suite. HyperCASH thus connects to the world of solution providers.
The use of HyperCASH is reserved for certified partners. The documentation is supportive and exemplary.

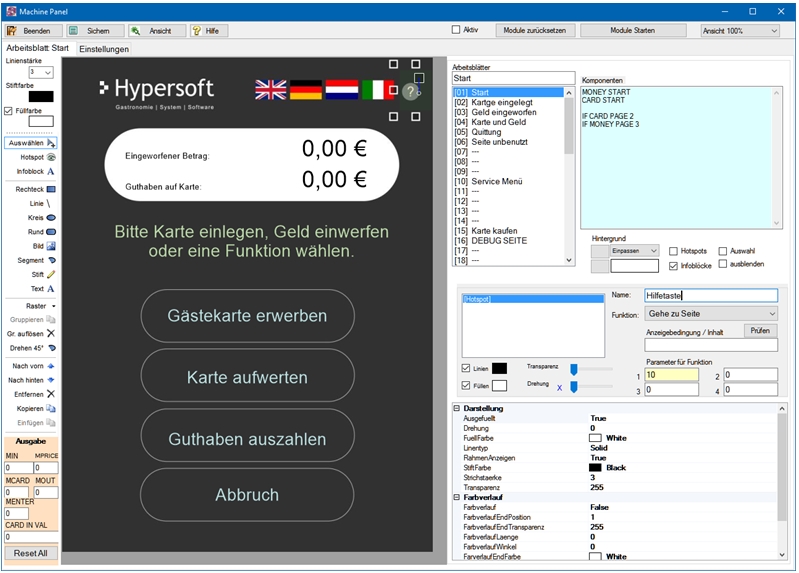

HyperCASH Program Structure
The structure of the screens and tools is largely self-explanatory and on a par with the Graphical Table Overview of Hypersoft. The detailed documentation for this can be applied from there (Graphic table overview).

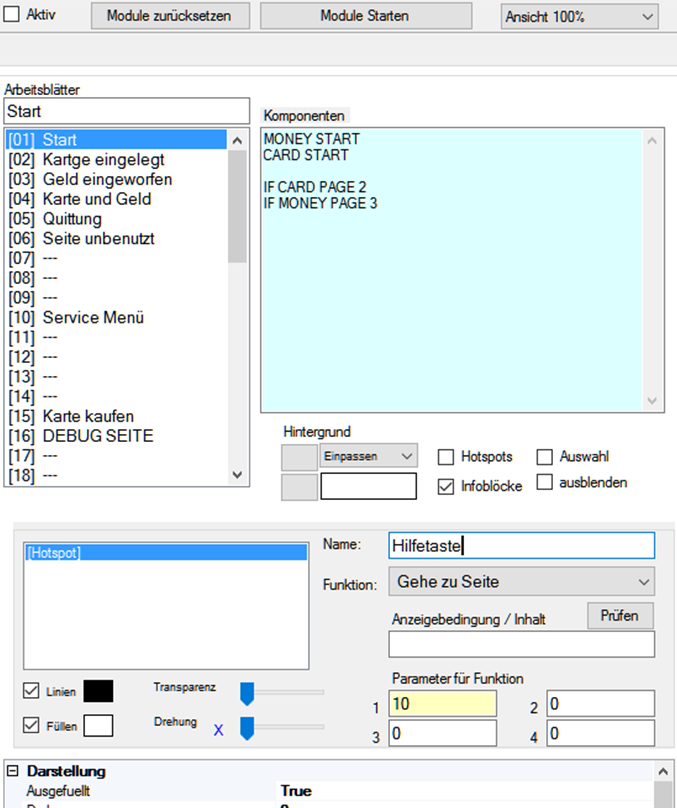

Each worksheet (page) has the Componentsfield on the right. Here commands can be sent directly to freely definable modules.
In this example, the START command is sent to the modules: MONEY and CARD.
Furthermore, IF events can be intercepted by the modules and thus referred to pages. Examples:
IF MONEY PAGE 3 or IF CARD PAGE 2. Here would be referred to page 3 for money insertion and to page 2 for reading a customer card.
By referring to pages, the functions are created and each possible event has its own page.

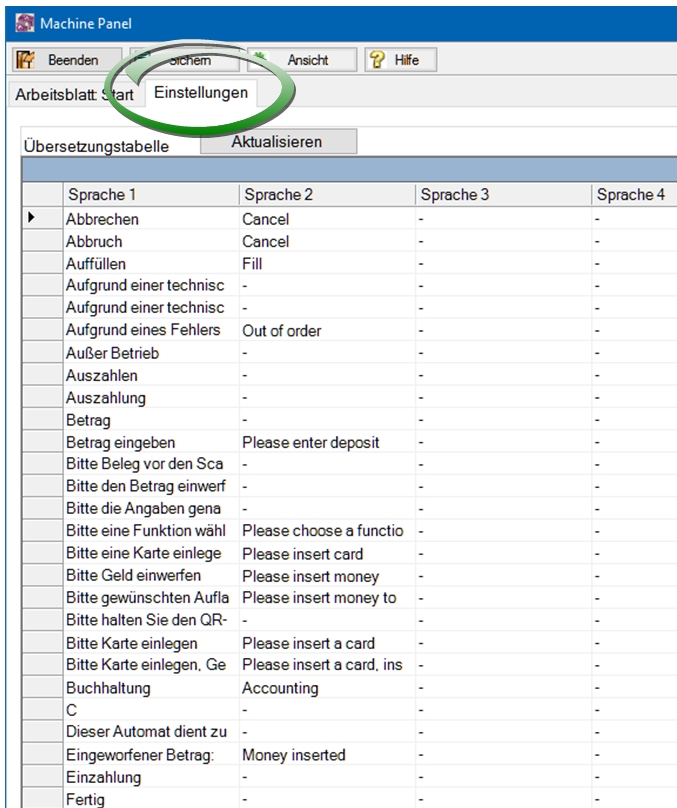

In the left area the texts from all elements are listed in tabular form and suggested for translation into 7 further languages. With the refresh button new texts are displayed in the elements.
Further free texts and translations can be entered.
In the right part 20 so-called scripts can be created. These scripts can be executed at the touch of a button and contain a complete functional sequence.
In the selected example, the instructions are as follows:
- Loading the card
- eject remaining money
- Set money module "to done"
- Print document
- reset all
- go to page 1
The hardware modules are announced in the lower right area. In the example CARD , MONEY and PRINT are used. These programs are started and communicate via a secure controller with the HyperCASH user interface. The Type column indicates the name that represents the modules to be addressed.
programming
A function can be assigned to each drawn element.
00] Graphic
10] Slot [MIN]
11] Price [MPRICE]
12] Difference [MDIFF]
13] Input [MENTER]
41] Remaining slot
42] Change [MOUT]
15] Key for input
20] Cardholder Name
21] Card balance [CSALDO]
30] Run script
51] Go to page
[52] Go back.
81] Data field 1
82] Data field 2
83] Data field 3
84] Data field 4
85] Data field 5
86] Data field 6
87] Data field 7
88] Data field 8
89] Data field 9
91] Language 1
92] Language 2
93] Language 3
94] Language 4
98]Date / Time
99]Exit
