JOMOsoft Connection Onboarding

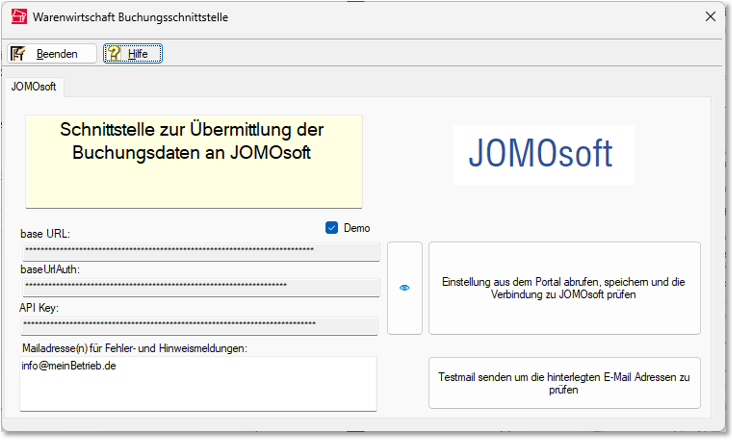

The JOMOsoft connection is called up in the MCP under Interfaces with the Merchandise Management Booking Interface programme.
After successful retrieval from the portal(first button on the right), the connection to the JOMOsoft API is simultaneously checked and confirmed with a note.
The second button sends a test mail to check the deposited mail address(es) (and if they are in the Junk Inbox, to set them as confidential for the future).
Edit interface numbers for JOMOsoft
Interface numbers are required for items, price levels and points of sale. The following describes the dialogues in which the interface numbers must be maintained:

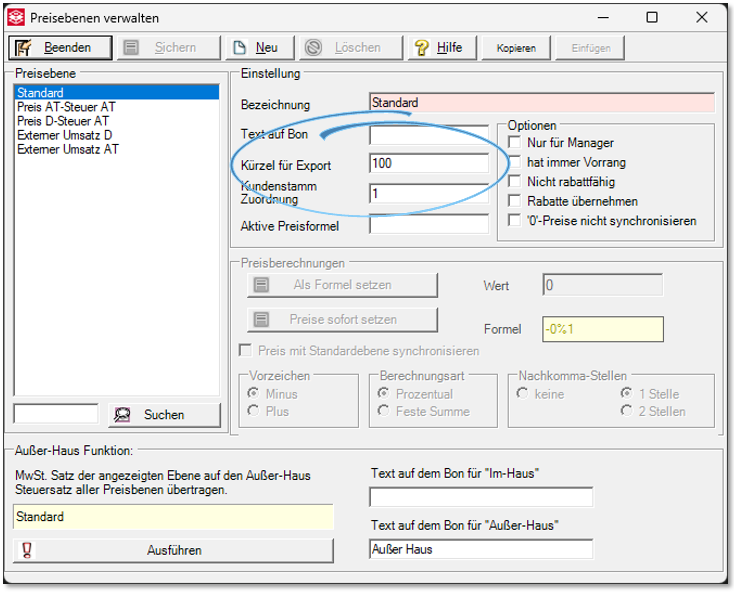

1. price levels in the field "abbreviation for export"...

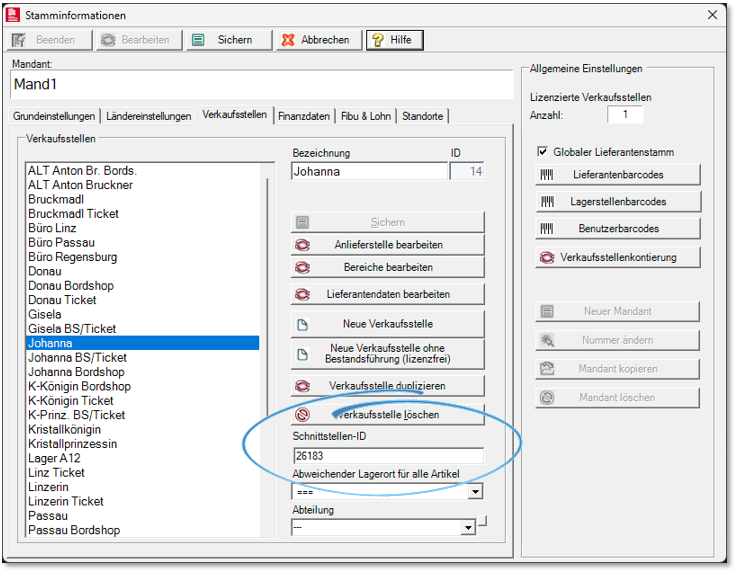

2. points of sale in the "Interface ID" field in the master information...

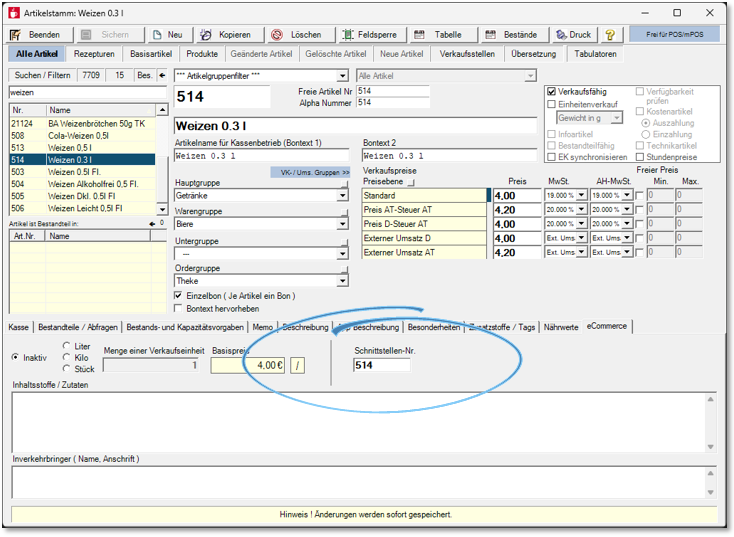

3. Items in the field "interface no." or in the table editing...
Technical details of the JOMOsoft connection
From the moment all the necessary settings have been made, the booking data is grouped according to the stored interface numbers and transferred to JOMOsoft after each cash register closing. If errors occur, they will be transmitted in detail to the e-mail address provided. Here, the error text from the API is listed per item. If no details are given in the error message, a standard text is transmitted. This reads: "An error occurred during the transfer to JOMOsoft. Item details are not available." If everything has been transmitted correctly, this is also signalled with a mail containing the following text: "The transmission to JOMOsoft has taken place without errors. x item bookings have been transmitted." Where x is the number of items transmitted.
A retransmission is not possible in the case of faulty items. After correction in JOMOsoft, only all subsequent bookings are transmitted again.
If no Internet is available in an outlet clearing system at the time of the cash closure, the outlet clearing system will try to execute the transmission after a few minutes and repeatedly (just like for the transmission of the cash entries for the head office).
