Orderman belt printer

The Orderman belt printer can optionally be operated with an Orderman MAX. The belt printer has no automatic cut, the paper is separated by a tear-off edge.

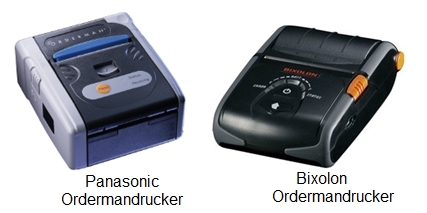

The Orderman Bixolon printer supports the output of the QR code for the Austrian Cash Register Ordinance (the first or old Orderman printer does not support QR codes).

The Bixolon order printer is called BP-111 in the order system. If this model is reported to Hypersoft, the system automatically activates the printing of the QR code (if the system has been set up for the Austrian Cash Register Ordinance).

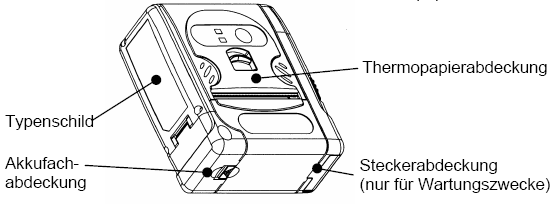

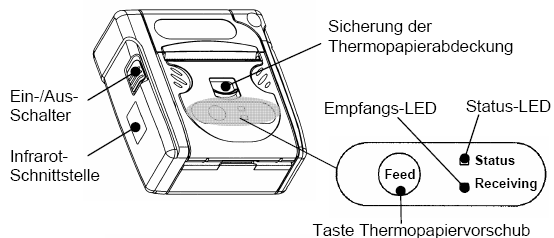

Representation and designation of the operating elements of the old order printer

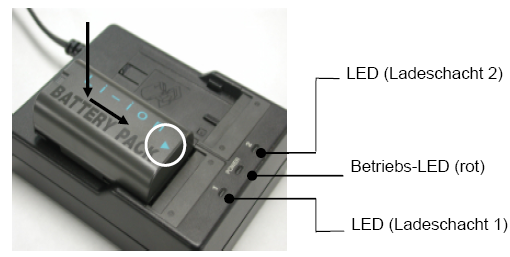

The Belt Printer Charging Station

Insert the battery in the direction of the arrow. The green flashing LED indicates the charging process. A continuous green light indicates that the battery is fully charged. You can insert batteries into both charging bays. The charging time is approx. 2 hours per battery.

Charge the battery for at least 100 minutes before first use. The battery should be removed from the charger after charging to increase its life.

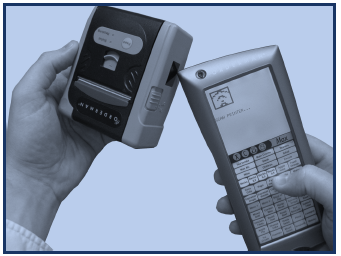

Synchronization Orderman MAX with the belt printer

To synchronize an Orderman Max with the belt printer, hold down a finger at any position on the touch surface while turning on the Orderman Max.

Keep your finger pressed on the touch surface and briefly touch the infrared window of the switched-on printer with the upper left corner of the MAX.

The detection and synchronization of the printer is displayed on the MAX screen. Now remove your finger from the touch surface. The synchronization of the belt printer with the MAX is started and completed with an automatic printout at the printer. You can repeat the synchronization at any time or change it to another belt printer.

---
