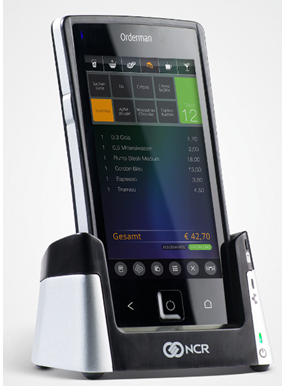

Orderman 7 devices

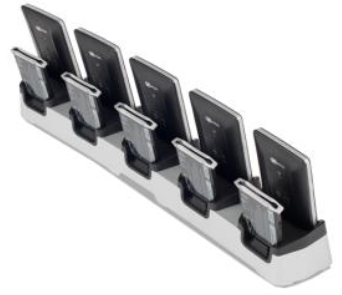

Mobile device in service stations
The Service Station is also available in a compact version for five devices.
Tip: Schedule at least one additional service station for a Multi Service Station for optimum reliability.
Operating instructions Orderman 7: download
Installation Instructions Orderman 7 MAX Emulation: download

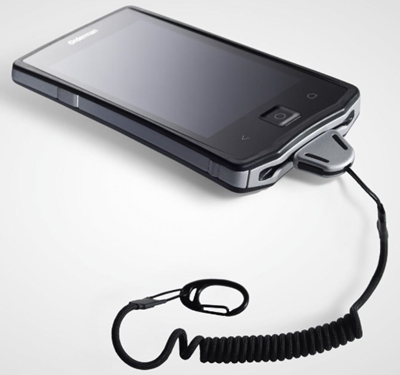

Mobile device with Safetey Cord

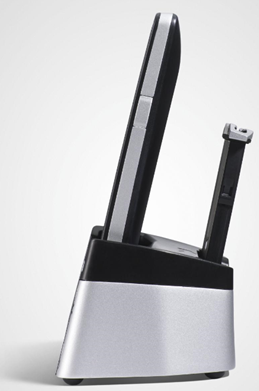

Charger and docking station (Charger)

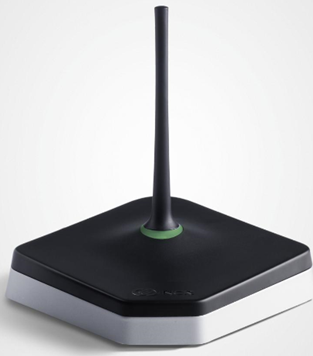

The Orderman Base Station 4 (short OMB4) is made especially for the Orderman 7. It uses IP technology and does not require any special Orderman routers as its predecessors require for networking. It is not downward compatible with SOL/ DON/ MAX/ LEO. The Orderman 7 can also work in compatibility mode (DON/ MAX) with the predecessors of the base station.
Hypersoft supports the ability to use the OMB4 with Orderman 7 and MAX compatibility (but not with the MAX handheld itself).
The Orderman base station 4 (OMB4 for Orderman 7) is addressed for MAX emulation via an Orderman component (OCX). This uses a virtual COM port for initialization. This simulates a connection with a fixed serial number (serial number 60000). This happens even if the OMB4 is actually not reachable. Please note that the communication to the OMB4 cannot be guaranteed by the program.
Further documentation:
Back to the parent page: Orderman Hardware (cancelled)
