Set up CashCONTROLLER
- - Discontinued - -
The program will not be developed further. Please change your workflow. Information on follow-up programmes, announcements and discontinuations, or alternatives can be found here: Discontinuation of Hypersoft products
The best way to set up the CashCONTROLLER is in the order described. It integrates seamlessly with the Hypersoft Suite from keyboard programming to billing.
CashCONTROLLER is compatible with POS Full-Service, POS Quick-Service and POS Ticketing.
Set up CashCONTROLLER
The CashCONTROLLER has a control program that is set up for operation. In operation it has no visible elements, as the visible control is taken over by the cash register system.
The CashCONTROLLER supplier is responsible for setting up this program.
Set up ward management

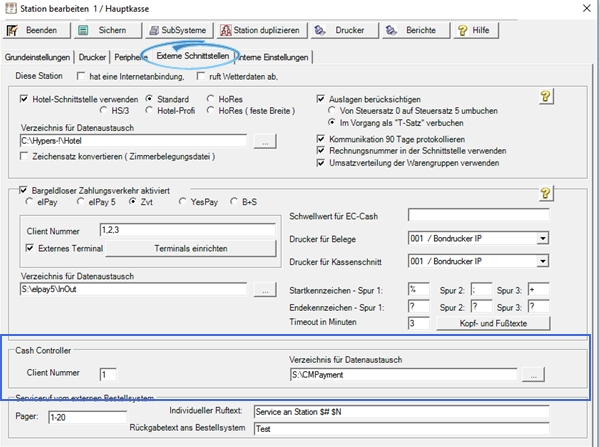

The settings for the CashCONTROLLER are made in the station management in the register External interfaces. A client number and the directory for the data exchange must be entered here. You can freely assign the client numbers here. If more than one POS terminal uses the same CashCONTROLLER, you can assign the same client number to them. If these fields are filled, the CashCONTROLLER function is offered in keyboard programming and used in macros. In the multi-payment dialog, this function will then be automatically included with the one you selected.
The data exchange directory is a common directory where the cashier mode and the CashCONTROLLER exchange data.
With the CashCONTROLLER payment method, the device is requested to collect or return the amount. Depending on whether the posting was positive or negative. In case of overpayment, the device gives change.
Functions in POS Cashier Mode
As a macro with the Run function, you can use the following commands:
- 30 + Execute: Completely empties the banknote recycler and hopper into the cash box.
- 31 + Execute: Empties the hopper completely into the cashbox.
- 32 + Execute: Empties the note recycler completely into the cash box.
- 34 + Execute: Empty both cashboxes. Hopper and sheet music.
- 35 + Run: Empty Hopper Cashbox.
- 36 + Run: Empty Cashbox notes.
A cash box is always the area used to collect the money. With the SMART COIN SYSTEM (SCS= [= SMART HOPPER WITH AUTOMATIC COIN FEED]) this is the self-sealing safety cash box and with the SMART Payout this is the so-called fake cash box.
The recycling area is the so-called payout module of the SMART Payout, i.e. the part of the device that holds the notes intended for renewed payout.
Banknotes shall be kept in two areas. Only the recycling area can be emptied by the machine itself. The hopper empties into the overflow safe (cashbox), if present.
