Orderman Server
- - Discontinued - -
The program will not be developed further. Please change your workflow. Information on follow-up programmes, announcements and discontinuations, or alternatives can be found here: Discontinuation of Hypersoft products
Directly in the CLOU-Mobile Server you can make settings that your CLOU-Mobile POS system controls. The program CLOU-Mobile Server is always started when an Orderman device is to be used.
Only one CLOU Mobile Server is started for an antenna or a router - no matter how many mobile devices are controlled with it.
A special variant is multiple use. Multiple use allows you to configure multiple areas to work independently with mobile devices. Each area has its own CLOU-Mobile server and can have its own antenna or its own network of router and antenna. This variant is intended for special requirements or installations with a large number of mobile devices. This generally has the condition that mobile devices can only work in one of the different areas.
The CLOU-Mobile Server is not started directly, but via a monitoring program (OMANSEND.EXE), which in turn starts one or more CLOU-Mobile Servers for multiple use. A delay of 10 seconds is defined for the program start, so that a waiting time occurs after the call.
Calling up the programme must be set up on the PC to which the base station is connected.
Automatic programme start with the Remote Commander...
To set up an automatic start on a station, use Remote Commander.
Further documentation: Remote Commander

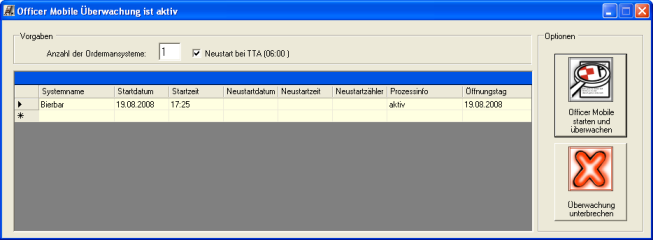

The monitoring programme
The monitoring program is necessary because Orderman software components are reliably available with it and disturbances in the communication to the mobile devices can be largely excluded.
| Element / Switch | Function / Description |
|---|---|
| Number of order man systems |
Enter 1 if you are using an Orderman Server with any number of mobile devices. In the case of multiple use, enter the appropriate number. Further documentation: CLOU MOBILE for Orderman |
| Restart at TTA | With this option you can restart the CLOU-Mobile Server daily to TTA. We recommend setting this when the system is on for 24 hours. |
|
Interrupt monitoring and Start and monitor CLOU-Mobile |
With the button Interrupt monitoring you can switch off the monitoring of the CLOU-Mobile server. If you close the CLOU-Mobile Server in this state, you can start it again with the Start CLOU-Mobile button. |
| table |
The table gives you detailed information in case the reliability of the system should not be given. |
Monitoring function:
The Remote Desktop Protocol (RDP) is a network protocol from Microsoft. With RDP, one of the two systems acts as a terminal server. This terminal server generates screen output on the terminal client. In addition, mouse and keyboard inputs can be accepted by the terminal client. access). The program is additionally addressed every 2 seconds, and if the program should not answer after the 5 inquiry (approx. 10 seconds), it is automatically terminated and restarted.The table gives you detailed information in case the reliability of the system should not be given.
Changing Settings in the CLOU Mobile Server
The monitoring program and the CLOU-Mobile server(s) are executed as minimized programs and can be maximized accordingly to reach the items for settings.
You can make the settings directly on the CLOU-Mobile server. If you want to make the settings by starting the program from the MCP, you can start the programs from the program group CLOU with the symbol CLOU-Mobile Server. After the start, the programs may have to be maximized to access the settings.
After you have made the settings, you must close the program and restart the CLOU-Mobile server which is used to control the devices. All mobile devices (DON and MAX) must be restarted and logged in so that the changes can be accepted. The easiest way is to restart the PC, as this ensures a restart of all components.
Further documentation: CLOU MOBILE for Orderman
Back to the parent page: CLOU MOBILE for Orderman
