Export data: Tables & fields

Purpose of this page

This page describes the technical structure of the export files from the Hypersoft procedures DSFinV_K, GDPdU/GoBD and Journal for Statistics.

It serves as a reference work for auditors, tax consultants and Hypersoft Support.

Here you will find a complete overview of all tables, fields and their meanings.

General information

All exports contain at least the Journal and Payment tables.
DSFinV_K exports also contain TSE data (TAR archives) and master data history (changelog.csv).
The tables are provided as XML and/or CSV, depending on the export method.
The TransactionID field links data records between tables.
Decimal values always use the dot as a separator (regardless of country settings).
Date formats follow ISO 8601 (YYYY-MM-DD).

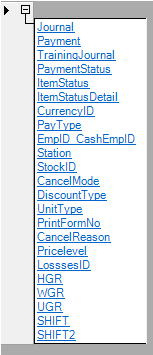

Table and field overview

The most important tables in the export (depending on the procedure, additional tables may be included):

Table	Description of the
TrainingJournal	Course bookings (empty if no course bookings exist).
Payment status	Status of the payment (disbursement, tip, etc.)
ItemStatus	is documented separately
ItemStatusDetail	Additional information on the ItemStatus
CurrencyID	Currencies used
PayType	Type of payment (cash, credit, etc.) )
EmpID	staff
station	stages
StockID	points of sale
CancelMode	Void variants
DiscountType	Discount variants (item, transaction, etc.) )
UnitType	Types for unit sales (time, weight, volume, etc.) )
PrintFormNo	Forms ( invoice printing )
CancelReason	Void reasons
PriceLevel	price levels
LossID	reasons for loss
HGR/WGR/UGR	Main groups / Commodity groups / Subgroups
SHIFT/SHIFT2	shifts
RefStatus	Reopening status: 0 normal transaction, 1 credit, 2 credit.

CancelModes (cancellation system)

0-99: Cancellations in regular checkout operation.

100-199: Cancellations with "Change payment method".

200-299: Cancellations when reopening transactions (ReOpen).

Further topics: Hypersoft procedure for cancellations

Example:

10 = Cancellation before order

11 = Cancellation after order

ItemStatus codes

Define the sales relevance of a booking and any additional information.

Cancellations with cancel mode IDs from 0-99 were carried out during regular checkout operations
Cancellations with cancel mode IDs from 100-199 were carried out using the Change payment method function
Cancellations with cancel mode IDs from 200-299 were carried out using the ReOpen function (reopening of processes)

Here it is useful to understand that there is a systematic relationship between the ID numbers. Each ID number below 100 has a comparable counterpart in the number ranges between 100 -199 and 200 - 299.

Further topics: Special price and loss treatment

Evaluation logic & field interpretation

Legend of tables and fields

The legends are provided in German.

Example: Legend_Table_Journal...

ID	Unique key number
TransactionID	unique index to the process and link to the other tables
station	Station number (cashier station)
OriginalStation	Station number (booking station)
SysDate	System date of the computer Format =YYYYMMDTT
etc...

Calculate daily turnover

Only data records in Journal.csv for which VatTab > 0 are relevant to sales.

Bookings with VatTab = 0 are not relevant to sales.

Daily turnover per opening day (OpenDate) = Quant × Price for all turnover-relevant items.

Item status codes not relevant to sales

1, 3, 5, 7 = training bookings (up to Hypersoft Suite 2012 SP 60)

9 = Conversion of old reopened data (up to Hypersoft Suite 2012 SP 60)

10 = Revenue-neutral value voucher (also web voucher)

11 = item voucher

12 = Bonus voucher

30, 31 = VAT distribution additional info (sales-relevant data record is 31)

36 = Sales distribution additional info (sales-relevant data record is 31, can be combined with sales mix)

60, 61 = Sales distribution Additional information

80, 81 = Combined VAT and sales distribution (since HF 11 / SP 11 2020)

90, 92 = Internal bookings without turnover (special function advance ticket sales)

Example: Sales mix with multiple tax rates

Status 30: Menu complete, full retail price.

Status 31: Partial turnover for 19% tax share (e.g. beverage).

Status 31: Partial turnover for 7% tax share (e.g. food).

Interpretation:

Status 30 → for quantities and sales calculation.

Status 31 → for tax calculation per tax rate.

Distribution of sales by product group

An article can be assigned to several product groups.

The NH_ProzValue field contains the distribution percentages.

See ItemStatus table for definitions.

Legend of tables and fields

Further topics: Splitting of turnover and value added tax

Examples:

ID - unique key number.

TransactionID - unique transaction index, link to other tables

Station - Station number (checkout station)

OriginalStation - Booking station

SysDate - System date in the format YYYYMMDD

(complete field list included in the export as a separate legend file)

Recognising related transactions within the scope of the facilitation rule

When the facilitation rule is applied (e.g. in the catering industry for so-called through-service), each individual order transaction is completed immediately after saving in the TSE, although the corresponding table or transaction remains open in the POS system until settlement.

The billing area column is used so that these technically separate order transactions can be recognised as a related business transaction in the subsequent export.

Structure of the payroll area value:

The entry follows the format:

Table-<table number>-<usage counter>-<document ID>

Meaning of the components:

Table number = number of the table from the POS system

Usage counter = consecutive counter per table, starting at 1 with each Z completion

DocumentID = unique document number of the order process (corresponds to the internal TransactionNr)

Example:

Tisch-12-3-10004711-01

→ means:

Table 12

third use of this table in the current daily closing
